Water Heating

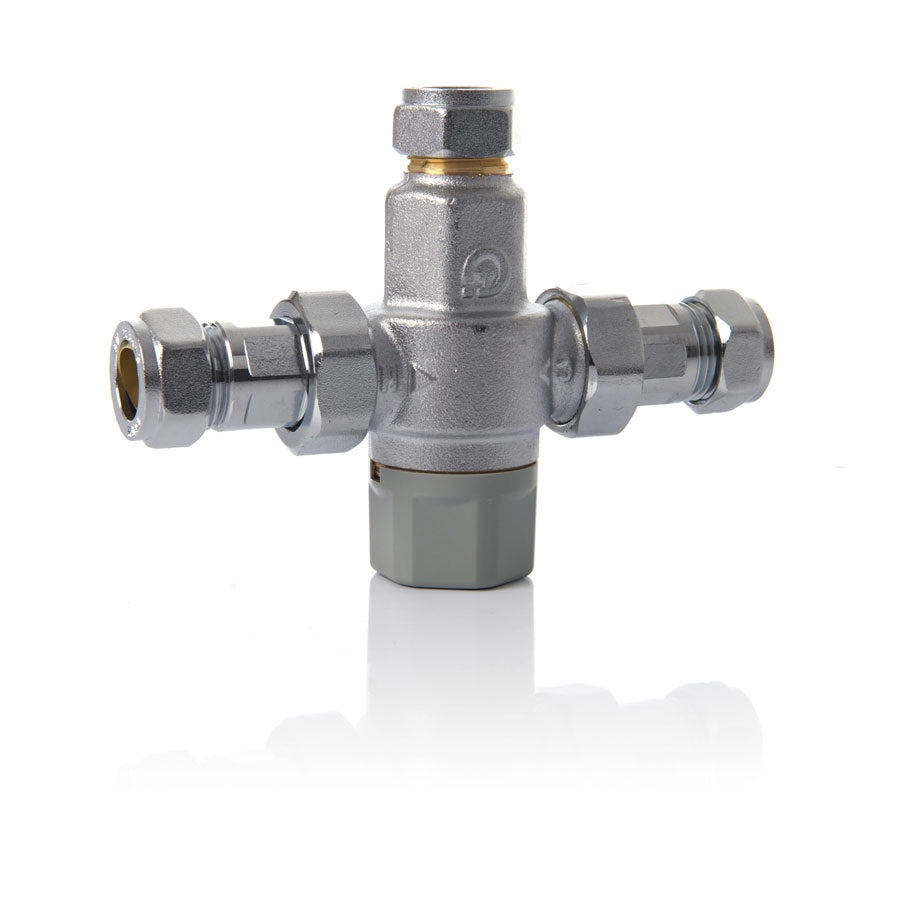

Powerflow Thermostatic Mixing Valve
For use with the Speedflow or Powerflow unit, where maintaining water supply at a safe and constant temperature is necessary. Ideal for use in many applications including schools, hospitals, public washrooms, restaurants and office and commercial kitchens. Delivers safe hot water to basins, baths and showers
Features and Benefits
· Allows water to be stored at high temperatures and blended with cold water to a preset outlet temperature
· Maintains water supply at a safe and constant temperature
· Allows extension of effective capacity by mixing high temperature water with cold to achieve the preset temperature level
· Allows water to be safely stored above 60 ºC
· Failsafe design
· Temperature setting range 35 – 46 ºC
· Temperature accuracy + 2 ºC
· Lockable control knob with unique key to prevent unauthorised temperature adjustment
Product Code |
Temperature Setting (ºC) |
Cold Water Connection (BSP) |
Failsafe |
Height (mm) |
Width (mm) |
Depth (mm) |
Weight (kg) |
TMV15-1 |
35 – 46 |
15mm Compression |
Yes |
115 |
140 |
37 |
0.5 |
